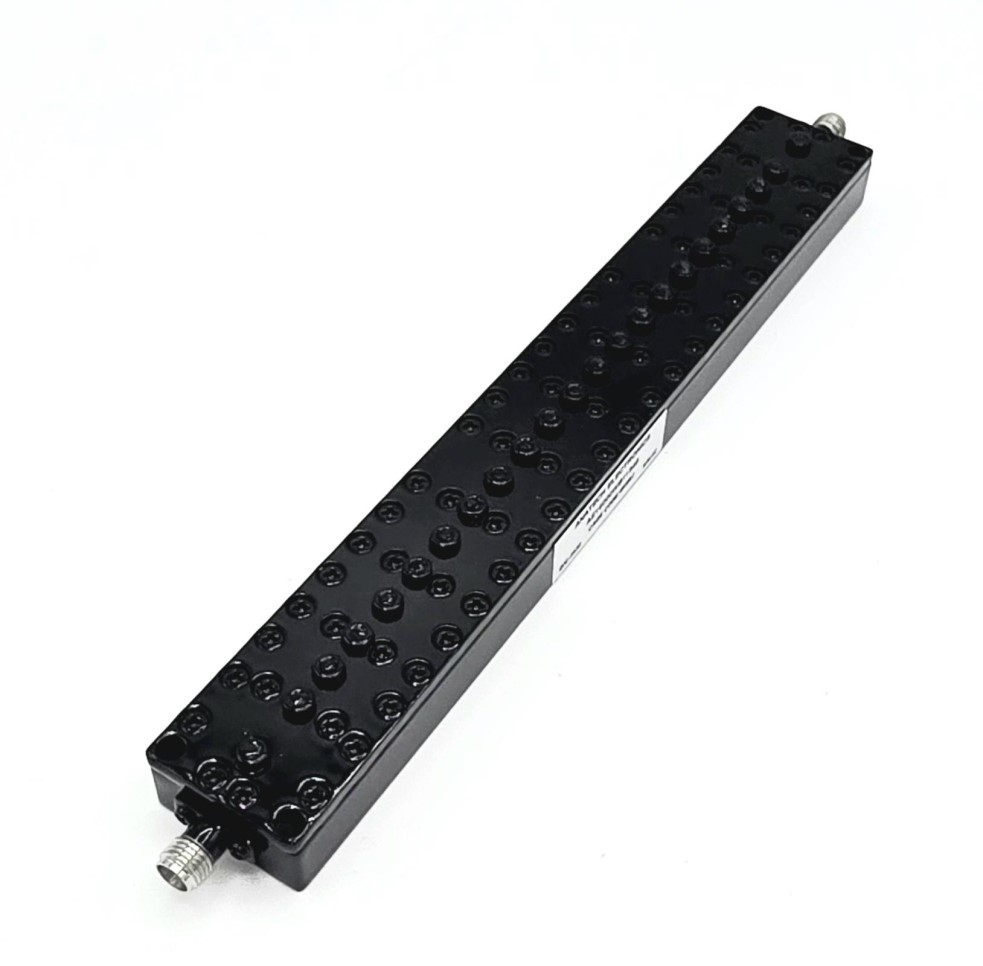

16000 MHz Waveguide Bandpass Filter

More Views

16000 MHz Waveguide Bandpass Filter
AE16000WB11548
16000 MHz Waveguide Bandpass Filter

Please enter the quantity you need quoted.

Description
16000 MHz Waveguide Bandpass Filter
Additional Information

Product Specifications

Parameter Value
Center Frequency 16000 MHz
Band Width 50 MHz
Pass Band 15950-16050 MHz
Insertion Loss ≤4.5dB
Return Loss 14.0 dB Min
Rejection (low side) ≥60dB@ 15900 MHz
Rejection (high side) ≥60dB@ 16100 MHz
Power Handling ≤20W
Connector Type SMA Female
Dimensions 167 x 23.8 x 11.9 mm
Product Drawing
